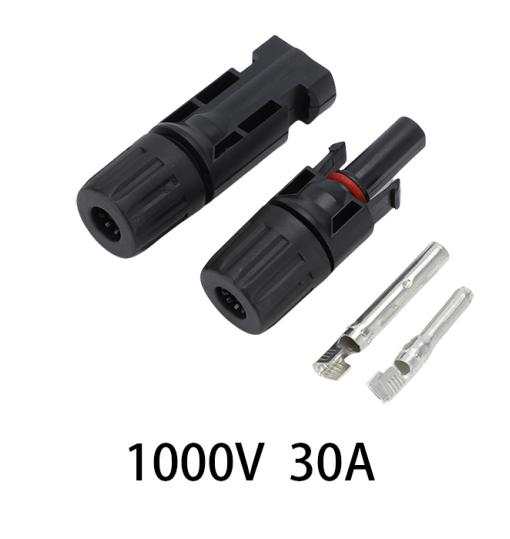

MC4 solar PV DC connector
1000V 30A Specification
model | BM-03(1000V) |
body material | PPO |

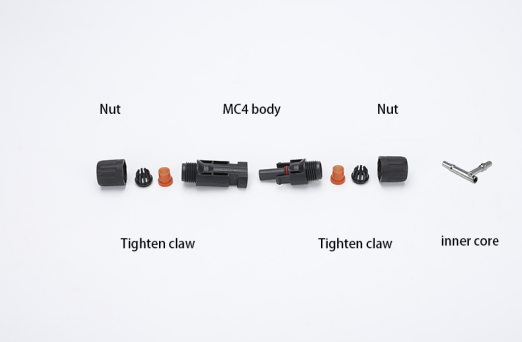

inner core | copper,nickle plated |
insulation resistance | >500MΩ |
terminal resistance | ≤0.5MS |
IP rate | IP67 |
wire range | 2.5/4. 0/6. 0mm2 |
working current | ≤30A |
working voltage | ≤DC1000V |
test voltage | DC6000V |
temperature range | -40C~+125C |
Stock:1000V 45A 1500V 30A 1500V 45A... are available
Usage:use for Solar Energy System
Any interests,contact me anytime jim@maikasen.com
