Crimp Ring Terminals Vinyl-insulated Copper Red Awg22-16 Rv

这里可以自定义设置

Product Description

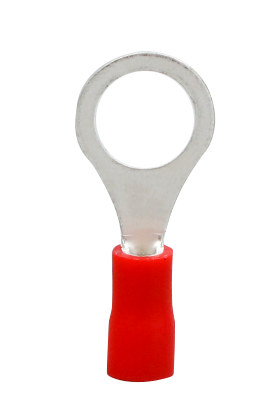

- RV1.25-5 vinyl-insulated ring terminals, it is with red color PVC insulation sleeve, and made with high quality copper materials.
- Our wire terminals are with bigger outer dimension than market standard part, so our crimp ring terminals is better conductivity, more durable, less prone to aging and bigger current carrying.
- And it is widely used in lathe, fly-frame, electric machinery, railroad, shipping, electric control, instrument and computers electrical home appliances trades.It reaches the international level electrically for the electrical connection industry.

Product Parameters

Product Name	Vinyl-Insulated Ring Terminals
Terminals Materials	Copper
Plated	Tin plated
Insulation Materials	PVC
Color	Red/Blue/Yellow/Black
Max Voltage Rating	600 volt
Max Temperature	75℃
Max Current Rating	19A
Wire size	AWG 22~16, 0.5~1.5mm2
Certificate	CE/Rohs report
Usage	Connecting Cable
Special	Free Sample

这里可以自定义设置

Product Details 1

PVC insulation sleeve: can be made red, blue, yellow or black as customer’s request, and the PVC is imported, without recycle materials, the max temperature is 75℃ and meet the EU Rohs standard.

Product Details 2

Copper plated tin terminals body: 99.9% pure copper, mare tin plated, plating thickness is more than 3um, with better conductivity . And it is passed more than 48h salt spray test. The inner whorl line is very clear.

Applications

Step1:

Strip the tail of the wire, prepare the mating terminal, and remove the protective layer of the wire that needs to be connected.

Step2:

Plug the wires into the terminals.

Step3:

Clamp the most recess with pliers to bring the copper wire into close contact with the clamp.

Step4:

Finishing.

COMPLIMENTARY SAMPLES FOR YOU

AND TECHNICAL CONSULTATION

Crimp ring terminals vinyl-insulated copper red AWG22-16 RV1.25-5S
