Fork Copper Terminals 22-16awg Tin Plated Crimp Terminals

这里可以自定义设置

Product Description

- SV1.25-5S vinyl-insulated spade terminals, it is with red color PVC insulation sleeve, and made with high quality copper materials.
- Our wire terminals are with bigger outer dimension than market standard part, so our crimp fork terminals is better conductivity, more durable, less prone to aging and bigger current carrying.
- And it is widely used in lathe, fly-frame, electric machinery, railroad, shipping, electric control, instrument and computers electrical home appliances trades.It reaches the international level electrically for the electrical connection industry.

Product Parameters

Product Name	Non-Insulated Ring Terminals
Terminals Materials	Copper
Plated	Tin plated
Insulation Materials	Naked
Max Current Rating	27A
Wire size	AWG 16~14, 1.5~2.5mm2
Certificate	CE/Rohs report
Usage	Connecting Cable
Special	Free Sample

这里可以自定义设置

Product Details 1

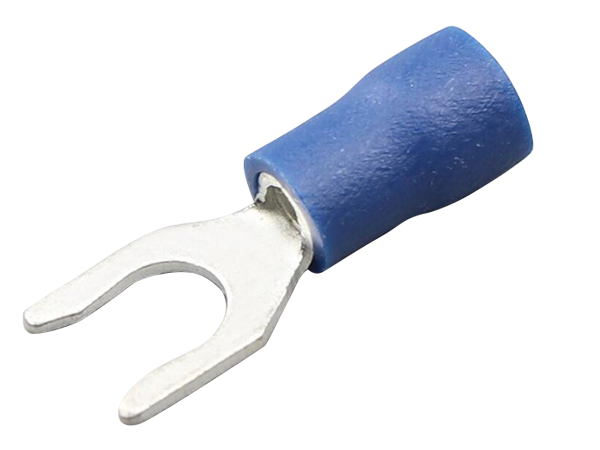

PVC insulation sleeve: can be made red, blue, yellow or black as customer’s request, and the PVC is imported, without recycle materials, the max temperature is 75℃ and meet the EU Rohs standard.

Product Details 2

Copper plated tin terminals body: 99.9% pure copper, mare tin plated, plating thickness is more than 3um, with better conductivity . And it is passed more than 48h salt spray test. The inner whorl line is very clear.

Applications

Step1

Strip the tail of the wire, prepare the mating terminal, and remove the protective layer of the wire that needs to be connected.

Step2

Plug the wires into the terminals.

Step3

Clamp the most recess with pliers to bring the copper wire into close contact with the clamp.

Step4

Finishing.

COMPLIMENTARY SAMPLES FOR YOU

AND TECHNICAL CONSULTATION

Fork Copper Terminals 22-16AWG Tin Plated Crimp Terminals red SV1.25-5S
